Outdoor Design & Site Plan Portfolio

Browse recent 2D site plans and realistic 3D outdoor visualizations developed for projects throughout Polk County and Central Florida.

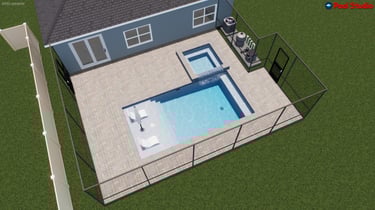

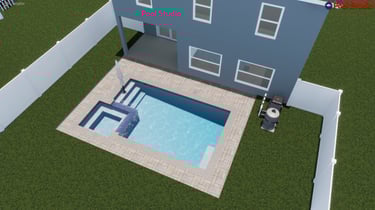

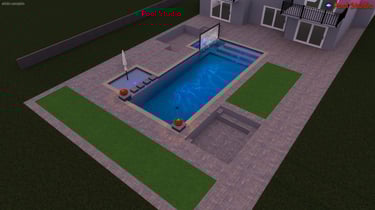

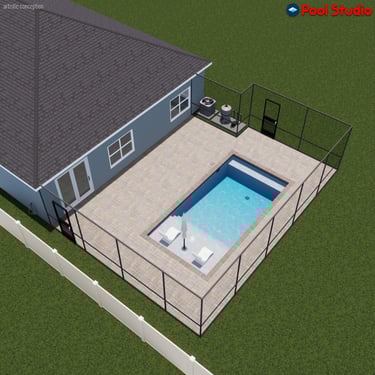

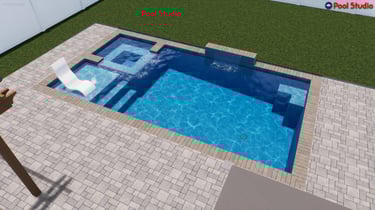

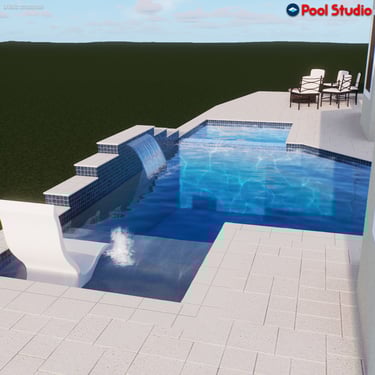

Modern Backyard Pool & Pergola Design

A 3D outdoor design featuring a modern pool layout with sun shelf, raised water feature wall, integrated spa, and covered pergola. Designed for functional backyard planning and high-impact visual presentation.

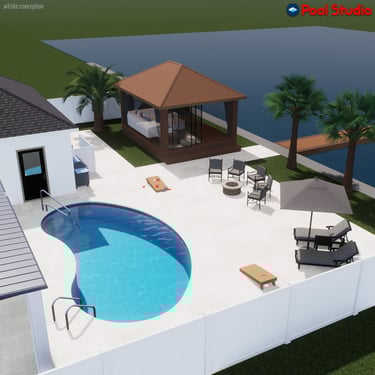

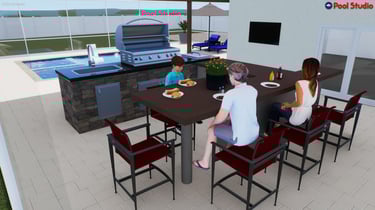

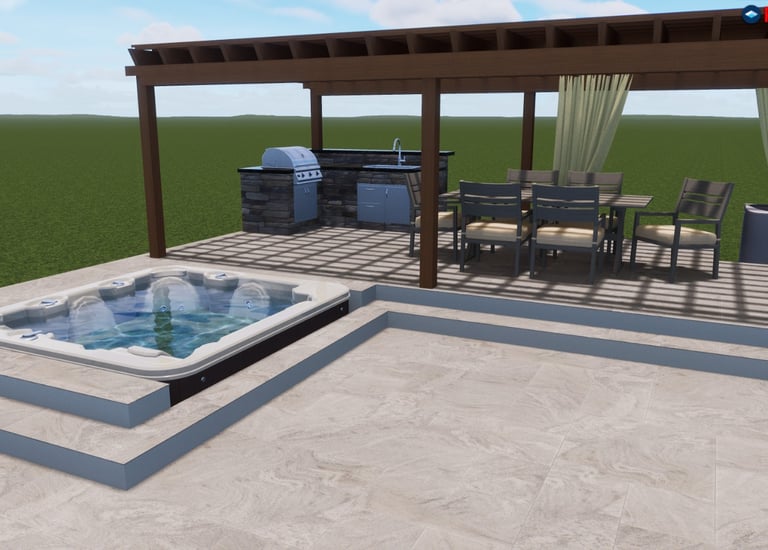

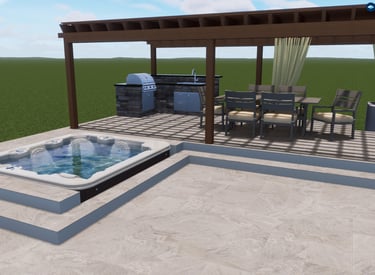

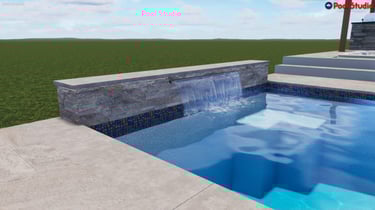

Modern Outdoor Kitchen & Spa Retreat

A contemporary outdoor living design featuring a recessed spa, elevated pergola structure, and fully integrated outdoor kitchen and dining area. This layout prioritizes comfort, entertainment, and efficient space planning while maintaining a clean and modern aesthetic.

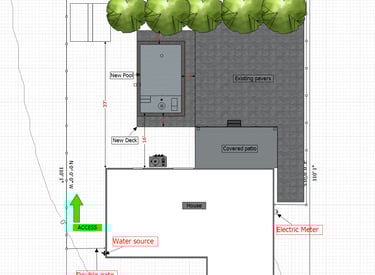

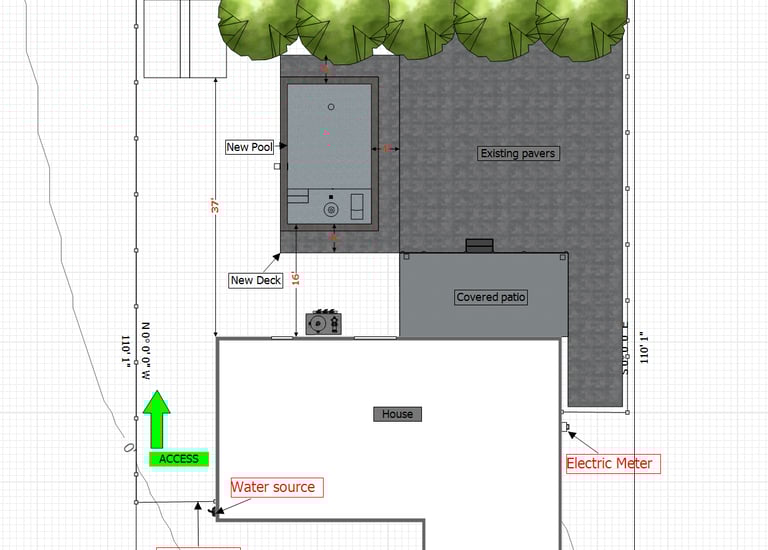

HOA-Ready Pool Layout & Site Plan

Professional 2D site plan created for a backyard pool project in Central Florida. Includes dimensions, setbacks, access routes, equipment placement, and clearly labeled existing and proposed structures to streamline HOA and construction review.

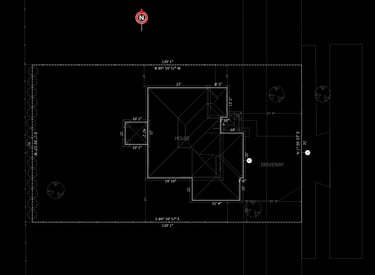

Residential Drafting & Survey Overlay – Contractor Support

Technical 2D drafting layout prepared from survey measurements, incorporating boundary lines, structural positioning, orientation markers, and dimensional references. Developed to streamline contractor workflow and assist licensed engineers during project development.
